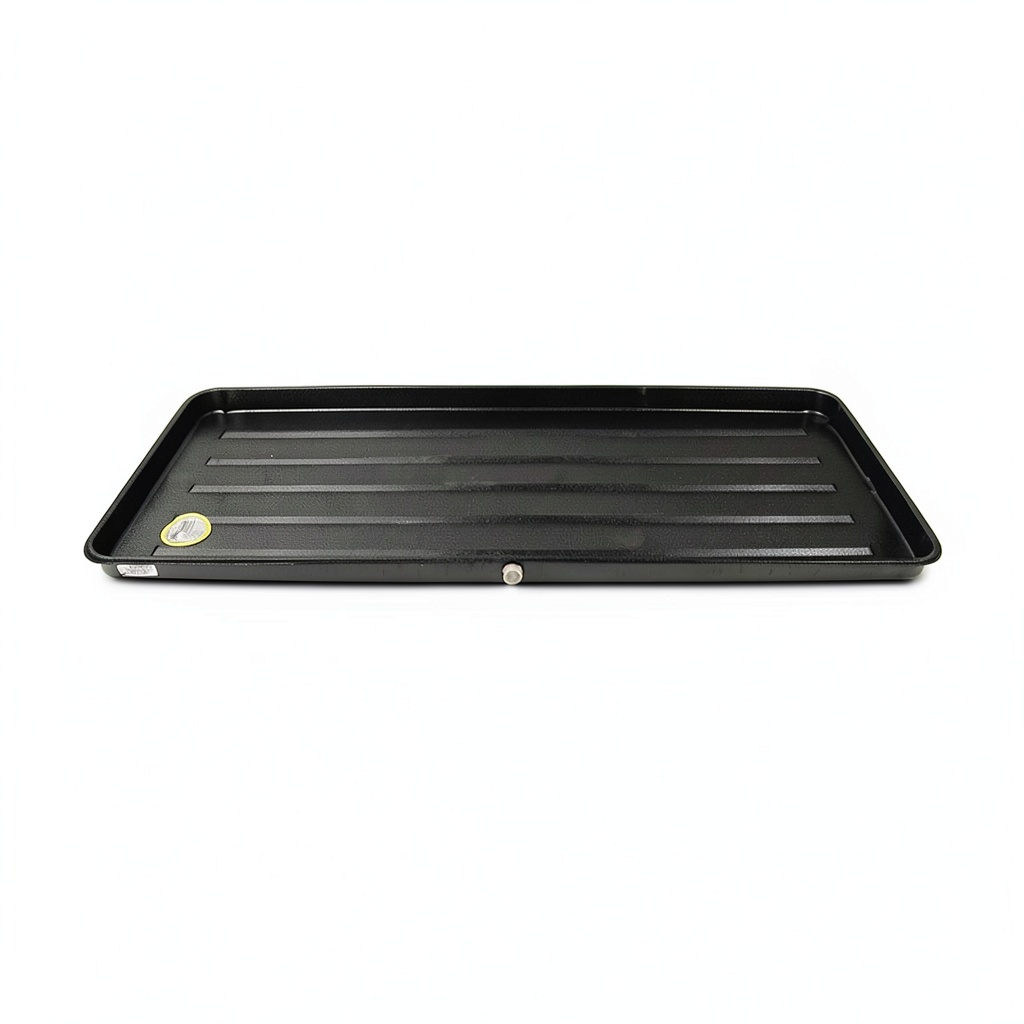

Diversitech 6-2763L A/C Condensate Drain Pan 27″ x 63″ 2″ Depth

Description

Product Overview

The Diversitech 6-2763L A/C Secondary Condensate Drain Pan is engineered to meet the rigorous demands of commercial refrigeration and food‑service environments. Measuring 27 inches by 63 inches with a 2‑inch depth, the pan provides ample capacity to contain up to two inches of standing water, preventing overflow and protecting surrounding equipment. Constructed from high‑impact Acrylonitrile Butadiene Styrene (ABS) plastic, the tray offers exceptional resistance to chemicals, temperature fluctuations, and physical abuse, ensuring a long service life even in harsh kitchen conditions. A 3/4‑inch polyvinyl chloride (PVC) discharge fitting is integrated into the long side outlet, allowing quick and secure connection to drainage systems without the need for additional adapters. The pan’s flat bottom and reinforced sidewalls distribute weight evenly, reducing stress points and minimizing the risk of cracking under heavy loads.

The design incorporates a vacuum‑formed ABS shell that eliminates seams and joints, creating a smooth, hygienic surface that is easy to clean and resistant to bacterial growth. Because the material is non‑porous, it does not absorb liquids or odors, which is essential for maintaining food safety standards in regulated environments. The pan’s dimensions are compatible with a wide range of refrigeration units, ice makers, and air‑conditioning condensers, making it a versatile replacement part for both new installations and retrofits. Its lightweight construction, at just 4.5 pounds, simplifies handling and installation while still delivering the structural strength required for industrial use.

The pan’s ABS composition is UL‑94 V‑0 rated for flame retardancy, meeting safety standards required in many commercial installations. Its surface finish is smooth and free of sharp edges, reducing the risk of injury during routine cleaning. The tray’s corners are reinforced with additional ribbing, which distributes stress and prevents cracking when heavy equipment is placed on top. Moreover, the material’s low moisture absorption rate ensures that the pan does not become heavier over time, maintaining its structural integrity and ease of handling throughout its service life.

To further enhance performance, the drain pan is designed with a slight forward tilt of approximately 2 degrees, encouraging natural flow of condensate toward the outlet without the need for pumps in most applications. This ergonomic design reduces the likelihood of stagnant water, which can promote bacterial growth. The integrated PVC fitting is positioned on the long side of the pan, providing convenient access for routing drainage hoses away from high‑traffic areas and minimizing tripping hazards.

Each unit undergoes a rigorous pressure‑test at 1.5 times the maximum expected condensate load to verify that the PVC outlet and the tray body remain leak‑free under stress. The testing protocol includes a 24‑hour soak in a saline solution to simulate harsh cleaning environments, followed by a visual inspection for any signs of cracking or deformation. Results from these tests are documented and available upon request, providing customers with confidence in the product’s durability and compliance with industry standards.

Usage

The drain pan is ideally suited for commercial kitchens, hotel laundry facilities, hospital food service areas, and any setting where large‑scale cooling equipment generates condensate. It can be positioned beneath walk‑in refrigerators, reach‑in coolers, ice‑making machines, and air‑conditioning condensers to capture runoff and direct it safely to a floor drain or sump pump. In food‑service operations, the pan helps maintain a clean work area by preventing water pooling on the floor, reducing slip hazards, and protecting flooring from water damage. Its 2‑inch depth accommodates the typical condensate volume produced during peak operation, while the integrated PVC outlet enables a direct, leak‑free connection to existing drainage infrastructure.

Installation requires only basic hand tools; the PVC fitting can be secured with a standard hose clamp, and the pan can be placed on a level surface or mounted on brackets for added stability. Because the ABS material is resistant to most cleaning agents, routine sanitation with hot water, mild detergents, or approved food‑service cleaners will not degrade the tray. The pan also performs well in environments with fluctuating temperatures, as ABS retains its shape and strength from sub‑freezing conditions up to temperatures exceeding 120 °F, ensuring reliable operation year‑round.

The drain pan is frequently employed in institutional settings such as schools, prisons, and military mess halls, where large‑scale food preparation generates significant condensate. Its ability to accommodate a variety of drainage configurations—whether connected to a gravity‑driven floor drain, a sump pump, or a condensate pump—makes it adaptable to the plumbing constraints commonly found in older facilities. By consolidating condensate collection into a single, easy‑to‑service tray, maintenance personnel can quickly locate and address any drainage issues, reducing service interruptions.

In high‑humidity environments such as beverage dispensing stations or ice‑cream freezers, the pan efficiently captures the increased volume of condensate generated during peak operation. Its robust construction allows it to be stacked temporarily during cleaning cycles, enabling quick turnover of multiple units without compromising durability. For facilities that operate 24 hours a day, the pan’s ability to hold two inches of water provides a safety buffer, allowing staff to address drainage issues without immediate shutdown of critical equipment.

Regular maintenance involves inspecting the PVC outlet for any signs of wear, ensuring the hose clamp remains tight, and cleaning the interior surface to remove any debris or mineral buildup. Because the ABS material does not corrode, the pan can be used with both metal and plastic drainage components. When paired with a properly sized floor drain, the system can handle the maximum condensate flow rates specified by manufacturers, typically ranging from 5 to 10 gallons per hour.

Why Choose Us

Choosing Diversitech means selecting a brand with over two decades of experience in manufacturing high‑quality industrial components for the food‑service and HVAC markets. Our commitment to precision molding and rigorous quality control processes guarantees that each drain pan meets exact dimensional tolerances and material specifications. Every unit undergoes a multi‑stage inspection, including dimensional verification, visual surface assessment, and pressure testing of the PVC outlet to confirm leak‑free performance. This attention to detail reduces the likelihood of premature failure and minimizes downtime for your operation.

In addition to product durability, Diversitech provides comprehensive customer support, including technical assistance for installation, troubleshooting, and parts compatibility. Our knowledgeable service team can help you select the appropriate accessories, such as hose clamps, drainage tubing, or mounting brackets, to ensure a seamless integration with your existing equipment. We also offer a straightforward return policy and warranty coverage that protects your investment, giving you confidence that the drain pan will perform reliably throughout its service life.

Our manufacturing facilities adhere to ISO 9001 quality‑management standards, guaranteeing consistent production processes and traceable component histories. Our environmental stewardship program emphasizes the use of recyclable ABS resin and minimizes waste through precision molding techniques. By selecting our drain pan, customers benefit from a product that not only meets performance expectations but also aligns with sustainability goals and regulatory compliance.

Beyond the product itself, we provide detailed installation guides, video tutorials, and on‑demand technical webinars to help your staff achieve a flawless setup. Our responsive support team is available via phone, email, or live chat, and we maintain a comprehensive knowledge base that addresses common questions about sizing, material compatibility, and troubleshooting. This holistic approach reduces downtime and ensures that your investment delivers maximum value.

Our after‑sales service includes a dedicated parts hotline that operates 24 hours a day, seven days a week, ensuring that any replacement components or accessories are dispatched promptly. We also maintain an online portal where customers can track order status, download technical drawings, and access warranty registration forms. This level of transparency and accessibility helps organizations maintain compliance with health and safety regulations while streamlining inventory management.

Key Features

• Spacious 27″ × 63″ footprint with 2″ depth holds up to two inches of condensate, preventing overflow in busy commercial settings.
• Durable ABS construction resists impact, chemicals, and temperature extremes for long‑term reliability.
• Integrated 3/4″ PVC discharge fitting provides a secure, leak‑free connection to drainage systems.
• Lightweight 4.5 lb design simplifies handling and installation while maintaining structural strength.
• Dedicated after‑sales support and technical assistance ensure proper installation and ongoing performance.

FAQ

What size drain pan do I need for my refrigeration unit?

The 27″ × 63″ dimensions are compatible with most walk‑in refrigerators, reach‑in coolers, and condensers that require a secondary pan. Measure the space beneath your equipment and compare it to the pan’s footprint to confirm fit.

Can the ABS material handle cleaning chemicals used in a kitchen?

Yes. ABS is resistant to most food‑service cleaning agents, including hot water, mild detergents, and approved sanitizers. It will not degrade or absorb chemicals, ensuring a hygienic surface.

How do I connect the PVC outlet to my existing drain line?

Secure the 3/4″ PVC fitting with a standard hose clamp and attach it to compatible drainage tubing or a floor drain. No additional adapters are required, and the connection is designed to be leak‑free.

What warranty does Diversitech offer on this drain pan?

Divi­se­tech provides a one‑year limited warranty covering material defects and workmanship. If the pan fails under normal use within this period, we will replace it at no charge.

Is the drain pan compatible with stainless‑steel equipment?

Yes. The ABS tray is chemically inert and will not react with stainless‑steel surfaces. It can be placed directly beneath stainless‑steel condensers or refrigeration units without causing corrosion.

Can I use the pan outdoors?

While the pan is weather‑resistant, it is primarily intended for indoor commercial use. Exposure to direct sunlight and extreme outdoor temperatures may affect the ABS material over time, so indoor installation is recommended for optimal longevity.
